CLV5050110

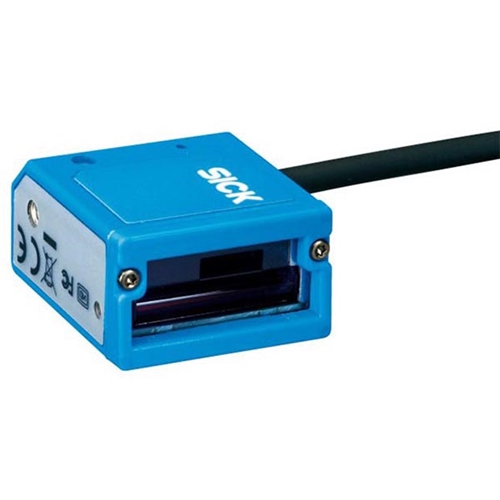

SICK (1046318) BAR CODE SCANNER USB CLV505-0110

Sick

Your cart total:

.

Checkout

0

1046318



































Manufacturer:SICK
Model:CLV505-0110
Height (mm):34.5
Width (mm):29
Depth (mm):17
Weight (kg):0.03
Series:Bar Code Scanners
Version:Standard range
Connection type:USB
Reading field:Front
Scanner design:Line scanner
Focus:Fixed focus
Light source:Visible red light (650 nm)
MTBF:10,000 h
Laser class:2
Field of view:< 40 °
Code resolution:0.15 mm … 1 mm
Reading distance:60 mm … 330 mm
Scanning frequency:< 1,000 Hz
USB:Yes
Reading pulse:Serial command, Button at housing
Optical indicators:1 LED
Acoustic indicators:Beeper/buzzer
Electrical connection:1 USB
Operating voltage:5 V DC ± 10 %
Housing colour:Light blue (RAL 5012)
Enclosure rating:IP 54
Protection class:III
Electromagnetic compatibility (EMC):EN 61000-6-3 (2007-01)
Ambient operating temperature:0 °C ... 45 °C
Permissible relative humidity:90 %, non-condensing
Ambient light safety:2,000 lx
Bar code print contrast (PCS):> 45 %

No extended details available.
