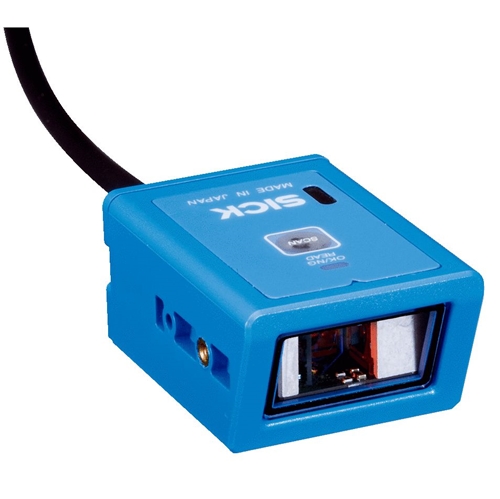

SICK (1046316) BAR CODE SCANNER CLV503-0110

Sick

Your cart total:

.

Checkout

0

1046316



































Manufacturer:SICK
Model:CLV503-0110
Height (mm):43.3
Width (mm):30
Depth (mm):20
Weight (kg):0.0185
Series:Bar Code Scanners
Version:Standard range
Connection type:USB
Reading field:Front
Scanner design:Line scanner
Focus:Fixed focus
Light source:Visible red light (650 nm)
MTBF:10,000 h
Laser class:2
Field of view:< 44 °
Code resolution:0.15 mm … 1 mm
Reading distance:50 mm … 630 mm
Scanning frequency:< 100 Hz
USB:Yes
Reading pulse:Serial command, Button at housing
Optical indicators:1 LED
Acoustic indicators:Beeper/buzzer
Electrical connection:1 USB
Operating voltage:5 V DC ± 10 %
Housing colour:Light blue (RAL 5012)
Enclosure rating:IP 45
Protection class:III
Electromagnetic compatibility (EMC):EN 61000-6-3 (2007-01)
Ambient operating temperature:-10 °C ... 45 °C
Permissible relative humidity:85 %, non-condensing
Ambient light safety:2,000 lx
Bar code print contrast (PCS):> 45 %
