9012GFWM1

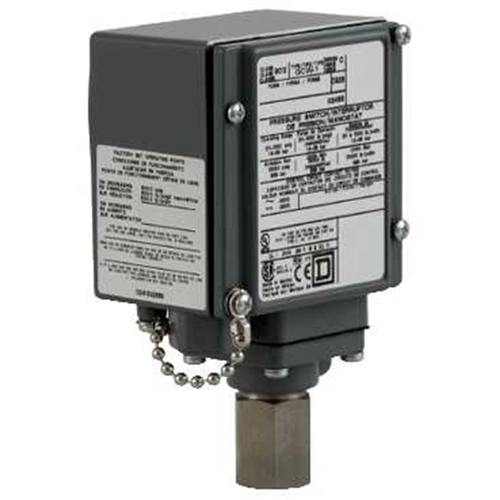

Telemecanique Sensors Gfwm1 Pressure Switch

Telemecanique Sensors

Your cart total:

.

Checkout

0

9012GFWM1
























Pressure Sensor Type :Electromechanical pressure switch
Pressure Sensor Size:1000 psi
Maximum Pressure :1000 psi
Contacts Type And Composition :NC-NO, 2 SPDT-DB, Form Z, snap action, silver nickel contacts
Controlled Fluid :Air, Non-corrosive liquids, Non-corrosive gas, Hydraulic oil (-15...250 °F)
Fluid Connection Type :0.25 inch BS2779 parallel pipe thread conforming to UL 508
Pressure Switch Type Of Operation :Detection of 1 single threshold
Scale Type :Fixed
Local Display :Without
Cable Entry:20 mm BS4568 conduit entrance
Electrical Connection :Screw-clamp terminals, AWG 22...12
(In) Rated Current :Refer To Data Sheet
Enclosure Material :Die cast aluminium alloy 380
Pressure Actuator :Piston
Operating Position :Any position
Make :Square D
Series :9012G
Product Range:Pressure Switch
Height (mm):158.496
Width (mm):128.27
Depth (mm):115.824
Weight (kg):1.36

No extended details available.
