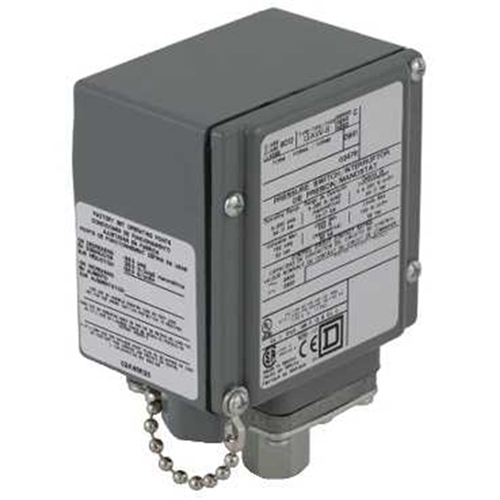

9012GAWM4
























Pressure Sensor Type :Electromechanical pressure switch
Pressure Sensor Size:75 psi
Maximum Pressure :240 psi
Contacts Type And Composition :NC-NO, SPDT-DB, Form Z, snap action, silver nickel contacts
Controlled Fluid :Air, Hydraulic oil (-40...250 °F), Non-corrosive liquids, Non-corrosive gas
Fluid Connection Type :0.25 inch BS2779 parallel pipe thread conforming to UL 508
Pressure Switch Type Of Operation :Regulation between 2 thresholds
Scale Type :Adjustable
Local Display :Without
Cable Entry:20 mm BS4568 conduit entrance
Electrical Connection :Screw-clamp terminals, AWG 22...12
(In) Rated Current :Refer To Data Sheet
Enclosure Material :Die cast aluminium alloy 380
Pressure Actuator :Diaphragm (nitrile (Buna-N))
Operating Position :Any position
Make :Square D
Series :9012G
Product Range:Pressure Switch
Height (mm):139.7
Width (mm):88.9
Depth (mm):66.802
Weight (kg):1.36
