9007FTUB4M11

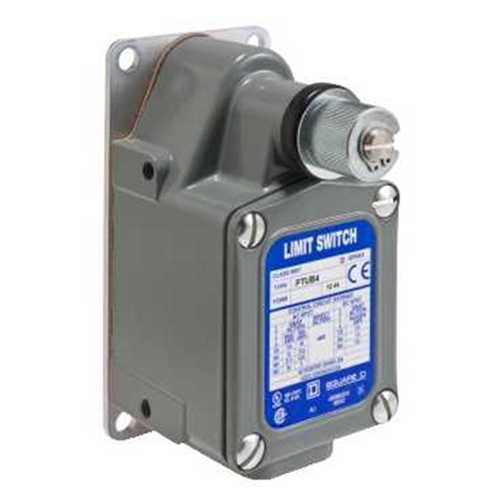

Square D FTUB4 LIMIT SWITCH

Telemecanique Sensors

Your cart total:

.

Checkout

0

9007FTUB4M11






















Body Type:Fixed
Head Type :Rotary head
Base Plate Style:Style B
Body Material :Cast zinc
Movement Of Operating Head :Rotary
Type Of Operator :Spring return without operating lever
Switch Actuation :From left or right, CW and CCW
Electrical Connection :Screw-clamp terminals 22...12 AWG
Cable Entry :1 entry for M20 - 20 mm BS 4568
Poles :1
Switch Function :SPDT-DB
Contacts Operation :Snap action
IP Protection :IP67 IEC 60529
Make :Square D
Series :9007
Product Range :Severe duty foundry
Height (mm) :118.364
Width (mm):57.15
Depth (mm):86.614
Weight (kg) :1.133
