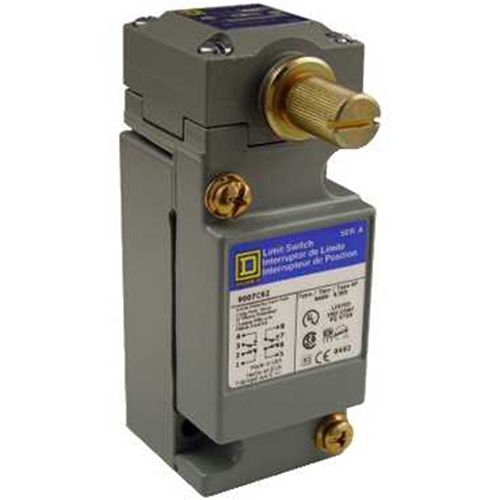

9007C62B2M11


Square D LIMIT SWITCH

Telemecanique Sensors

Your cart total:

.

Checkout

0

9007C62B2M11






















Body Type:Plug-in
Head Type :Rotary head
Base Plate Style: -
Body Material :Zinc
Movement Of Operating Head :Rotary
Type Of Operator :Zinc spring return without operating lever (-)9007C lever
Switch Actuation :From left and right, CW and CCW
Electrical Connection :(12...22 AWG) screw-clamp terminals, 1...2
Cable Entry :1 entry for M20 x 1.5 mm conforming to BS 4568
Poles :2
Switch Function :DPDT-DB
Contacts Operation :Snap action
IP Protection :IP67 conforming to IEC 60529
Make :Square D
Series :9007
Product Range :Limit Switch
Height (mm):102.108
Width (mm):39.37
Depth (mm):63.5
Weight (kg) :0.566

No extended details available.
