88310075

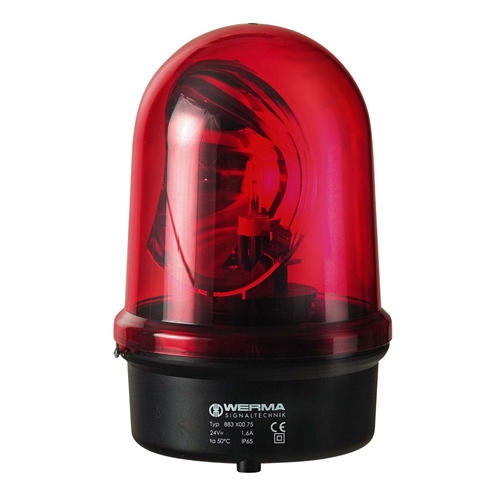

WERMA ROTATING MIRROR BEACON 24VAC/DC

BASE MOUTNING IP65 140 DIA. X 220MM

Werma

Your cart total:

.

Checkout

Discontinued

883.100.75
























Connection:Screwable connection with wire protection max. 2.5 mm² finely stranded
Fixing:Base mounting
Rotation Frequency:180 1/min
Colour:red
Socket:G6.35
Cable Entry:Rubber squeeze grommet; cable diameter 5 - 7 mm
Service Life:min. 5,000 h (bulb: dependent on illuminant)
Protection Rating:IP65
Voltage:24V AC/DC
Voltage Type:AC/DC
Current Consumption:1,6 A
Temperature Range:-30°C...+50°C
Housing Material:PC/ABS-Blend
Lens:PC
Signal Effect:Rotating Mirror
Lamp:G6.35 35 W
Drive:wheel and disc drive, motor in black
Scope of delivery:Bulb included
Height (mm):218
Width (mm):142
Depth (mm):142
Weight (kg):0.7
