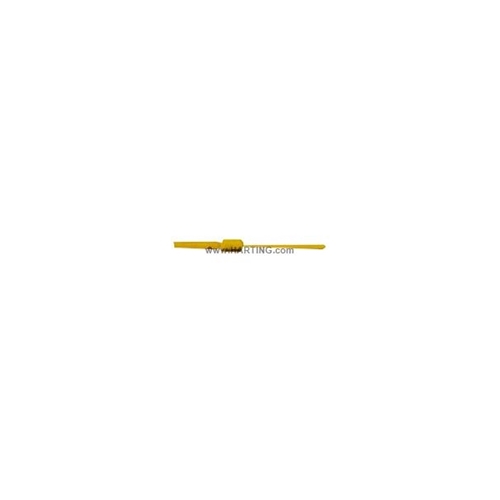

61030000073





















Gender:male
RoHS Conformity:Yes
Series:Han-Modular
Contact Resistance:<= 3 mOhm
Wire Gauge mm² Min.:0.33 mm2
Wire Gauge, Max.:0.52 mm2
Wire Gauge AWG, Min.:AWG 22
Wire Gauge AWG, Max.:AWG 20
Material, Contact:copper alloy
Surface, Contacts:gold plated contacts
Approval UL:Yes
Approval CSA:Yes
Specification:DIN EN 60 664-1DIN EN 61 984
Diameter of Drilling Hole:1.12 mm
Stripping Length, Min:5 mm
Make :Harting
Product Range :INDUCOM contacts male AWG 20 - 22 PL1
Width (mm):14.8
Net Weight:0.17 g

No extended details available.
