60949

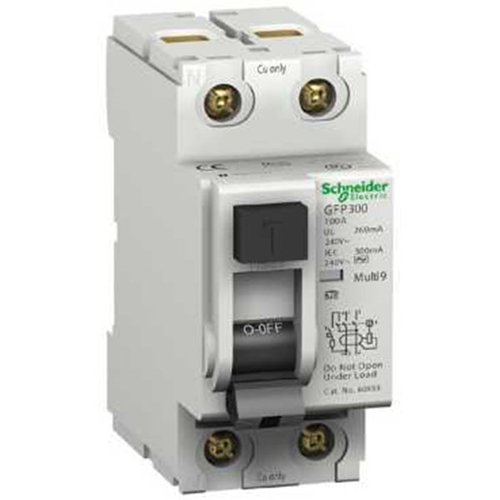

SCHNEIDER GROUND FAULT PROTECTOR 2P 25 30MA

Schneider Electric

Your cart total:

.

Checkout

Alternative Products:

0

60949


























Range of Product:GFP
Device Short Name:Ground fault protector
Poles Description:2P
Neutral Position:Left
Rated Current:25 A ( 40 °C )
Network Type:AC
Earth-leakage Sensitivity:30 mA
Earth-leakage Protection Time Delay:Instantaneous
Earth-leakage Protection Class:Class AC SiE
Rated Conditional Short-circuit Current:10 kA
Utilisation Category:AC-23A
Network Frequency:50/60 Hz
Rated Operational Voltage:230/240 V AC 50 Hz
120/240 V AC 60 Hz
Rated Impulse Withstand Voltage:6 kV
Control Type:Toggle
Local Signalling:Fault indication
9 mm Pitches:4
Mechanical Durability :20000 cycles
Provision for Padlocking:Padlockable
Locking Options Description:Padlocking in OFF position
Connections - Terminals:Tunnel type terminals 2.5...35 mm² flexible
Tunnel type terminals 2.5...35 mm² rigid
IP Degree of Protection:IPxx B conforming to IEC 60529
IP20 conforming to IEC 60529
IP40 conforming to IEC 60529
Weight (kg):0.23
