6045078

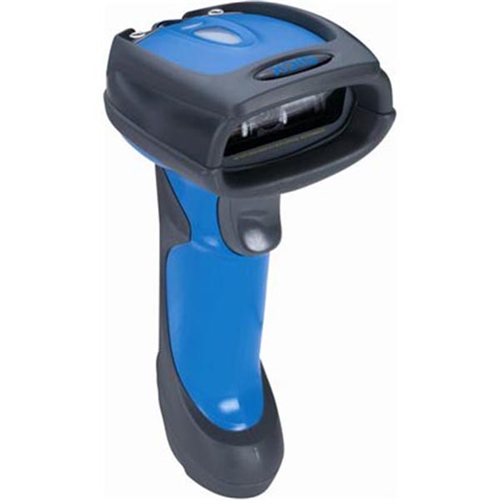

SICK IDM160 SCANNER

Sick

Your cart total:

.

Checkout

Discontinued

6045078













































Manufacturer:SICK
Model:IDM160
Height (mm):185
Width (mm):76
Depth (mm):104
Weight (kg):0.2
Series:Hand-held Scanners
Field of application:Industrial
Version:Long range
Scanner design:1D code hand-held scanner
Light source:Visible red light (630 nm)
Code resolution:> 0.076 mm
Reading distance (at code resolution):50 mm … 800 mm (0.5 mm)
Reading field (at distance):200 mm (200 mm)
Scanning frequency:< 500 Hz
Supported code type:1D
Serial:Yes
Function (Serial):RS-232 TTL
Ethernet:Yes
Protocol (Ethernet):PROFINET (optional via external connection module CDM)
Remark (Ethernet):Optional via external connection module (CDM + CMF)
CAN bus:Yes
Remark (CAN bus):Optional via external connection module (CAN232)
PROFIBUS DP:Yes
Remark (PROFIBUS DP):Optional via external connection module (CDF)
DeviceNet:Yes
Remark (DeviceNet):Optional via external connection module (CDM + CMF)
PS/2:Yes
Function (PS/2):Keyboard wedge
USB:Yes
Function (USB):Keyboard wedge, COM-Port emulation
Optical indicators:2 LEDs (operational status, good read)
Acoustic indicators:Beeper, disengageable (good read)
Vibration:Yes
Operating voltage:5 V DC ± 5 %
Power consumption:Operation (vibration activated): 230 mA, Operation (vibration deactivated): 180 mA, Standby: Typ. 90 mA
Housing colour:Blue/grey
Enclosure rating:IP 65
Shock resistance:50 drops from 2 m height on concrete
Ambient operating temperature:-20 °C … 50 °C
Storage temperature:-30 °C … 70 °C
Permissible relative humidity:± 95 %, non-condensing
Ambient light safety:100,000 lx

No extended details available.
