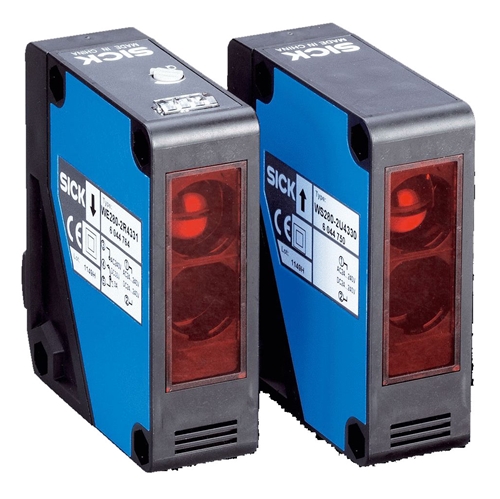

SICK (WSE280-2H1531) THROUGH BEAM PHOTOELECTRIC

SENSOR

Sick

Your cart total:

.

Checkout

0

6044748









































Manufacturer:SICK
Model:WSE280-2H1531
Height (mm):74.5
Width (mm):23.5
Depth (mm):63
Weight (kg):0.3
Series:Photoelectric Sensors
Sensor/Detection Principles:Through-beam photoelectric sensor
Housing design:Rectangular
Sensing range max:0 m … 60 m
Sensing range:0 m … 50 m
Type of light:Visible red light
Light source:BrightLight LED
Sensitivity Adjustment:Potentiometer
Light spot size (distance):Ø 0.6 m (20 m)
Supply voltage:24 V AC … 240 V AC, 24 V DC … 240 V DC
Power consumption, sender:< 3.5 VA
Power consumption, receiver:< 3.5 VA
Output type:Relay
Output function:Change-over contacts
Switching mode:Light switching
Output characteristic:Electrically isolated
Switching current (switching voltage):3 A (240 V AC), 3 A (30 V DC)
Response time:< 15 ms
Switching frequency:33 Hz
Connection type:Cable, 5-wire, 2 m
Conductor cross-section:0.76 mm²
Circuit protection:A, C
Protection class:II
Overvoltage category:222
Interference emission:EN 61000-6-3 (only -2Hxxxx)
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 66, IP 67
Items supplied:Mounting bracket BEF-W280
Usage category:AC-15, DC-13, According to EN 60947-1
EMC:EN 60947-5-2
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
