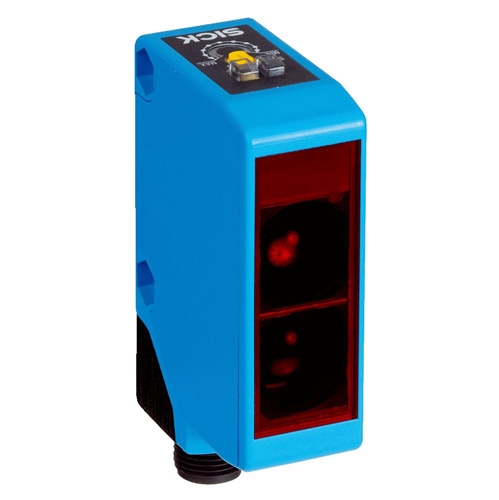

SICK WL250-2P243 SENSOR

W250-2 PHOTOELECTRIC RETRO-REFLECTIVE SE NSOR

Sick

Your cart total:

.

Checkout

0

6044699







































Manufacturer:SICK
Model:WL250-2P2431
Height (mm):65
Width (mm):20
Depth (mm):43.9
Weight (kg):0.04
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, standard optics
Housing design:Rectangular
Sensing range max:0.01 m … 15 m
Sensing range:0.01 m … 13 m
Type of light:Visible red light
Light source:BrightLight LED
Sensitivity Adjustment:Potentiometer, 2-turn
Angle of dispersion:Ca. 2°
Light spot size (distance):Ø 260 mm (8 m)
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 20 mA
Output type:PNP
Switching mode:Light/dark-switching
Output characteristic:Open collector
Switching mode selector:Selectable via L/D control wire
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, B, C, D
Protection class:III
Polarisation filter:Yes
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 67
Items supplied:BEF-W250 mounting bracket, Reflector P250
EMC:EN 60947-5-2
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
