6040985

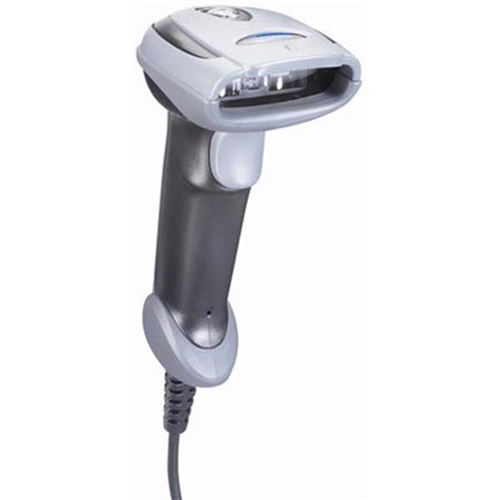

SICK IDM140-201D HAND HELD SCANNER

Sick

Your cart total:

.

Checkout

Discontinued

6040985












































Manufacturer:SICK
Model:IDM140-201D
Height (mm):156.2
Width (mm):70.5
Depth (mm):97.8
Weight (kg):0.16
Series:Hand-held Scanners
Field of application:General purpose
Version:Mid range
Scanner design:1D code hand-held scanner
Light source:Visible red light (630 nm)
Code resolution:> 0.076 mm
Reading distance (at code resolution):50 mm … 600 mm (0.5 mm)
Reading field (at distance):150 mm (200 mm)
Scanning frequency:< 500 Hz
Supported code type:1D
Serial:Yes
Function (Serial):RS-232 TTL
Ethernet:Yes
Remark (Ethernet):Optional via external connection module (CDM + CMF)
CAN bus:Yes
Remark (CAN bus):Optional via external connection module (CAN232)
PROFIBUS DP:Yes
Remark (PROFIBUS DP):Optional via external connection module (CDF)
DeviceNet:Yes
Remark (DeviceNet):Optional via external connection module (CDM + CMF)
PS/2:Yes
Function (PS/2):Keyboard wedge
USB:Yes
Function (USB):Keyboard wedge, COM-Port emulation
Optical indicators:2 LEDs (operational status, good read)
Acoustic indicators:Beeper, disengageable (good read)
Vibration:No
Operating voltage:5 V ± 5 %
Power consumption:Operation: Typ. 180 mA, Standby: Typ. 80 mA
Housing colour:Black/grey
Enclosure rating:IP 41
Shock resistance:25 drops from 1.8 m height on concrete
Ambient operating temperature:0 °C … 50 °C
Storage temperature:-40 °C … 70 °C
Permissible relative humidity:± 95 %, non-condensing
Ambient light safety:100,000 lx

No extended details available.
