6035480

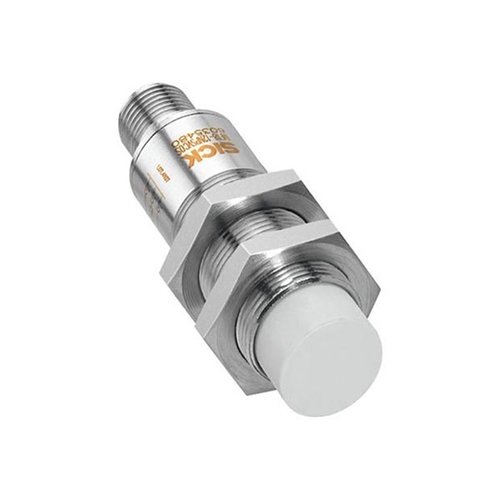

SICK IMF1812NPSVC05 IMF18 IND SENSOR

Sick

Your cart total:

.

Checkout

Discontinued

6035480




































Manufacturer:SICK
Model:IMF18-12NPSVC0S
Length (mm):63
Series:Inductive Proximity Sensors
Housing:Cylindrical
Thread size:M18 x 1
Sensing range Sn:12 mm
Assured sensing range Sa:9.72 mm
Installation type:Non-flush
Switching frequency:1,500 Hz
Output type:PNP
Output function:NO
Electrical wiring:DC 3-wire
Enclosure rating:IP 68, IP 69K
Connection type:Connector M12, 4-pin
Supply voltage:10 V DC … 30 V DC
Ripple:< 10 %
Voltage drop:< 2 V
Power consumption:< 15 mA
Time delay before availability:50 ms
Hysteresis:1 % … 20 %
Repeatability:0.05
Temperature drift (% of Sr):± 10 %
EMC:According to EN 60947-5-2
Output current Ia:< 200 mA
Short-circuit protection:Yes
Reverse polarity protection:Yes
Power-up pulse protection:Yes
Shock/vibration:30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature:-40 °C … 80 °C
Housing material:Stainless steel V4A (1.4404, 316L)
Housing cap material:PPS
Thread length:27 mm
Tightening torque, max:50 Nm

No extended details available.
