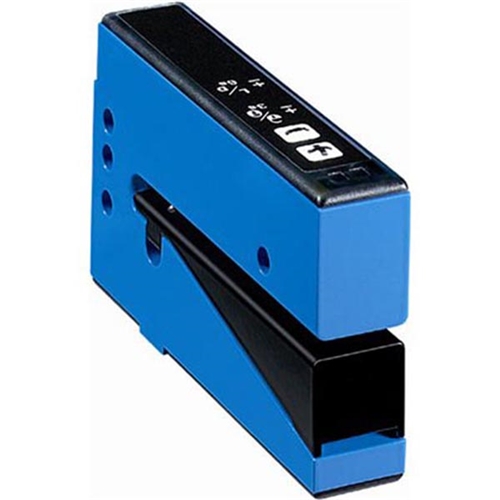

SICK (UF3-70B410) FORK SENSOR

Sick

Your cart total:

.

Checkout

Discontinued

6034888






























Manufacturer:SICK
Model:UF3-70B410
Width (mm):3
Depth (mm):69
Weight (kg):0.095
Series:Fork Sensors
Functional principle:Ultrasonic detection principle
MDO:Size of labels: 2 mm, Gap between labels: 2 mm
Label detection:Yes
Adjustment:Manual ("+"/"-" button)
Output function:Light/dark switching, selectable via button
Supply voltage:DC 10 V … 30 V
Ripple:< 10 %
Power consumption:40 mA
Switching frequency:1,200 Hz
Response time:300 µs
Output type:NPN: HIGH = approx. VS / LOW = 2 V, PNP: HIGH = VS- = 2 V / LOW approx. 0 V
Switching mode:PNP/NPN
Output current Imax:100 mA
Initialisation time:100 ms
Connection type:Connector M8, 4-pin
Protection class:III
Circuit protection:Output Q short-circuit protected, Interference suppression
Enclosure rating:IP 65
Housing material:Aluminium
Ambient temperature:Operation: 5 ... 30 °C, Storage: -30 ... 70 °C
Shock load:According to EN 60068-2-27
Discontinued:The product has been discontinued. Replacement product's model numbers: UFN3-70N415, UFN3-70P415, UFN3-70B413
