6033220

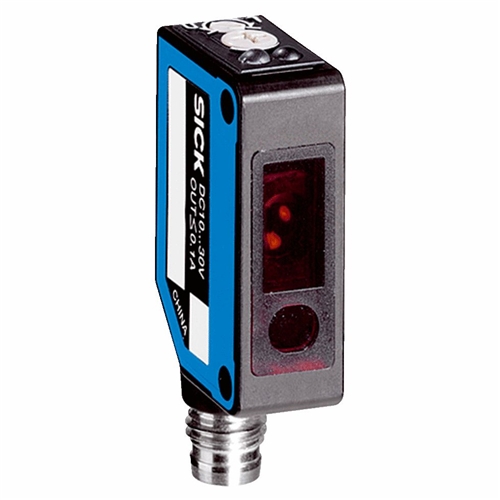

SICK PHOTOELECTRIC PROXIMITY SWITCH

WTB8L-N2231 BGS, long range, laser, NPN, light/dark switching, sensitivity adj . potentiometer, plug M8 4 pin, incl. m ou n ting bracket

Sick

Your cart total:

.

Checkout

0

6033220







































Manufacturer:SICK
Model:WTB8L-N2231
Height (mm):31
Width (mm):11
Depth (mm):20
Weight (kg):0.01
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular, Slim
Sensing range max:30 mm … 300 mm
Sensing range:40 mm … 300 mm
Type of light:Visible red light
Light source:Laser
Laser class:I
Wave length:650 nm
Sensitivity Adjustment:Potentiometer, 4-turn
Light spot size (distance):Ø 1.5 mm (300 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:± 10 %
Power consumption:< 30 mA
Output type:NPN
Switching mode:Light/dark-switching
Output characteristic:Open collector
Switching mode selector:Manually selectable
Signal voltage NPN HIGH/LOW:Approx. VS/< 1.8 V
Output current Imax:100 mA
Response time:< 0.25 ms
Switching frequency:2,000 Hz
Connection type:Connector M8, 4-pin
Circuit protection:A, B, D
Housing material:ABS, Plastic
Optics material:PMMA
Enclosure rating:IP 67
Items supplied:Stainless steel mounting bracket (1.4301/304) BEF-W100-A
Ambient operating temperature:-10 °C … 50 °C
Ambient storage temperature:-40 °C … 70 °C
UL File Number:CDRH-conform
