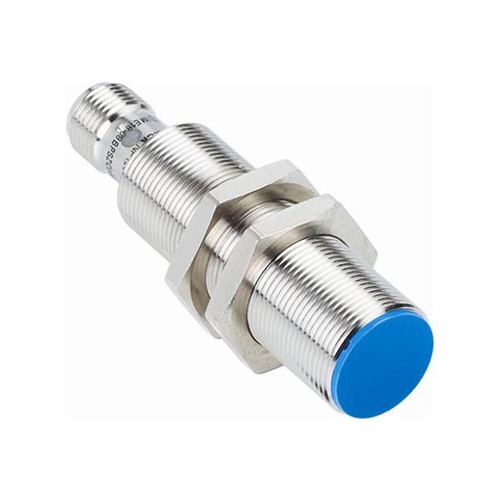

6032715








































Manufacturer:SICK
Model:IM18-12NNS-ZQD
Length (mm):50
Series:Inductive Proximity Sensors
Housing:Cylindrical
Thread size:M18 x 1
Sensing range Sn:12 mm
Installation type:Non-flush
Switching frequency:300 Hz
Output type:NPN
Output function:NO
Electrical wiring:DC 3-wire
Enclosure rating:IP 67
Connection type:Cable with connector M12, 4-pin, 1 m
Housing:Standard
Supply voltage:10 V DC … 30 V DC
Ripple:< 10 %
Voltage drop:< 1 V
Power consumption:< 10 mA
Time delay before availability:< 100 ms
Hysteresis:2 % … 15 %
Repeatability:< 5 %
Temperature drift (% of Sr):± 10 %
EMC:According to EN 60947-5-2
Output current Ia:< 400 mA
Cable material:PVC
Conductor cross-section:0.34 mm²
Wire-break protection:0
Short-circuit protection:Yes
Reverse polarity protection:Yes
Power-up pulse protection:Yes
Shock/vibration:30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature:-25 °C … 70 °C
Housing material:Metal, Nickel-plated brass
Housing cap material:Plastic
Thread length:32 mm
Tightening torque, max:30 Nm
Special features:Including 2 toothed washers, output signal to PIN4
