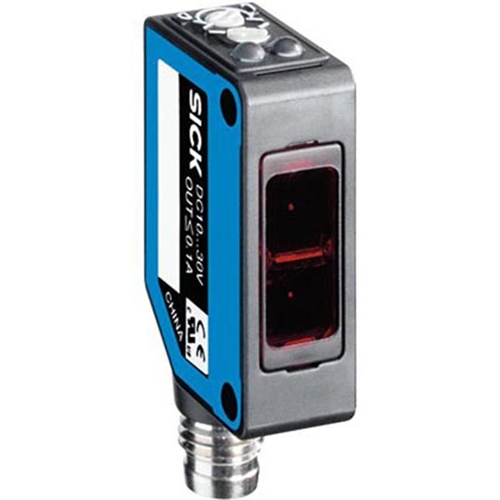

Sick Sensor WL100N4420

Sick

Your cart total:

.

Checkout

Discontinued

6028608








































Manufacturer:SICK
Model:WL100-N4420
Height (mm):31
Width (mm):11
Depth (mm):20
Weight (kg):0.009
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, standard optics
Housing design:Rectangular, Slim
Sensing range max:0.01 m … 3 m
Sensing range:0.01 m … 2.6 m
Type of light:Visible red light
Light source:LED
Wave length:680 nm
Sensitivity Adjustment:Potentiometer, 270 °
Angle of dispersion:Ca. 4°
Light spot size (distance):Ø 200 mm (2 m)
Supply voltage:10 V DC … 30 V DC
Ripple:± 10 %
Power consumption:< 30 mA
Output type:NPN
Switching mode:Light/dark-switching
Output characteristic:Open collector
Switching mode selector:Manually selectable
Signal voltage NPN HIGH/LOW:Approx. VS/< 1.8 V
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Attenuation along light beam:> 20 %
Connection type:Connector M8, 4-pin
Circuit protection:A, B, D
Polarisation filter:Yes
Housing material:ABS/PC/POM
Optics material:PMMA
Enclosure rating:IP 65
Special feature:For transparent objects
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
