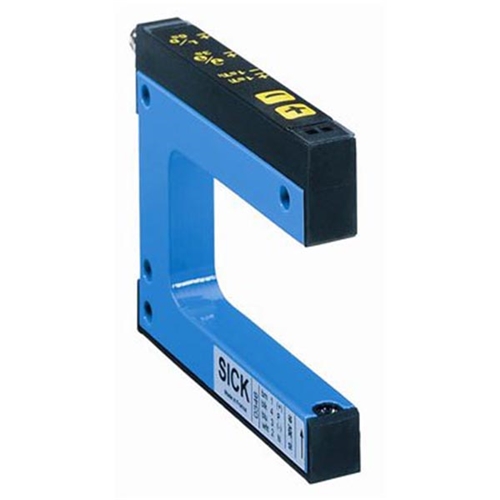

SICK (WF2-95B416) FORK SENSOR

Sick

Your cart total:

.

Checkout

0

6028464
































Manufacturer:SICK
Model:WF2-95B416
Width (mm):2
Depth (mm):95
Weight (kg):0.16
Series:Fork Sensors
Functional principle:Optical detection principle
MDO:0.2 mm
Label detection:Yes
Light source:LED, infrared
Adjustment:Teach-in
Output function:Light/dark switching, selectable via button
Supply voltage:DC 10 V … 30 V
Ripple:< 10 %
Power consumption:40 mA
Switching frequency:10 kHz
Response time:100 µs
Stability of response time:± 20 µs
Output type:NPN: HIGH = approx. VS / LOW = 2 V, PNP: HIGH = VS- = 2 V / LOW approx. 0 V
Switching mode:PNP/NPN
Output current Imax:100 mA
Initialisation time:100 ms
Connection type:Connector M8, 4-pin
Ambient light safety:Sunlight: < 10,000 klx
Protection class:III
Circuit protection:VS connections reverse-polarity protected, Output Q short-circuit protected, Interference suppression
Enclosure rating:IP 65
Housing material:Aluminium
Ambient temperature:Operation: -20 ... 60 °C, Storage: -30 ... 80 °C
Shock load:According to EN 60068-2-27

No extended details available.
