6027584

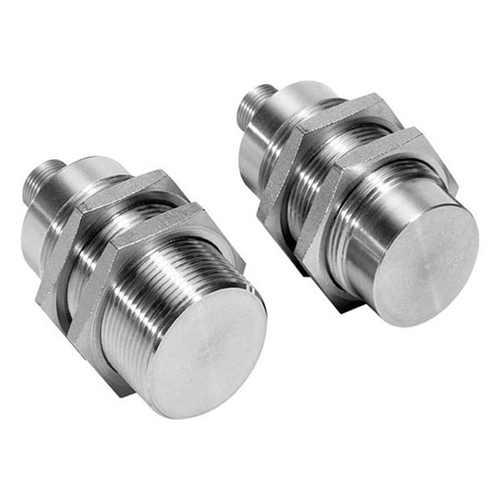

SICK IM30-40NPS-NC1

INDUCTIVE PROXIMITY SENSOR

Sick

Your cart total:

.

Checkout

0

6027584




































Manufacturer:SICK
Model:IM30-40NPS-NC1
Length (mm):63.5
Series:Inductive Proximity Sensors
Housing:Cylindrical
Thread size:M30 x 1.5
Sensing range Sn:40 mm
Assured sensing range Sa:32.4 mm
Installation type:Non-flush
Switching frequency:90 Hz
Output type:PNP
Output function:NO
Electrical wiring:DC 3-wire
Enclosure rating:IP 68, IP 69K
Connection type:Connector M12, 4-pin
Supply voltage:10 V DC … 30 V DC
Ripple:< 20 %
Voltage drop:< 2 V
Power consumption:< 10 mA
Time delay before availability:< 40 ms
Hysteresis:1 % … 15 %
Repeatability:< 5 %
Temperature drift (% of Sr):= 10 %
EMC:According to EN 60947-5-2
Output current Ia:< 200 mA
Short-circuit protection:Yes
Reverse polarity protection:Yes
Power-up pulse protection:Yes
Shock/vibration:30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature:-25 °C … 85 °C
Housing material:Stainless steel V4A (1.4435, 316L)
Housing cap material:Metal
Thread length:32 mm
Tightening torque, max:150 Nm
