6027343

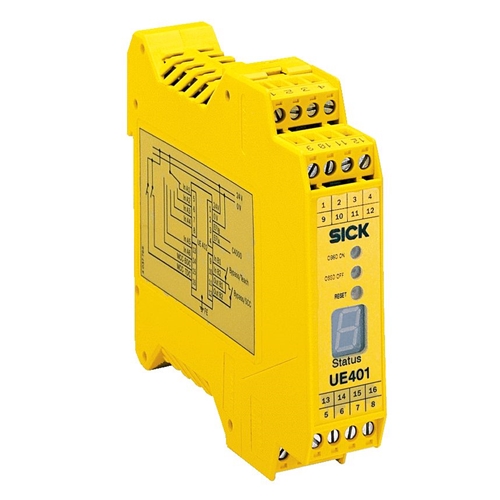

SICK UE401-A0010 SWITCHING AMPLIFIER

CAT4 SIL3 IP20

Sick

Your cart total:

.

Checkout

0

6027343









































Manufacturer:SICK
Model:UE401-A0010
Height (mm):66
Width (mm):22.6
Depth (mm):113.5
Series:Switching Amplifiers
Opto-electronic protective devices:Yes
Number of single-beam photoelectric safety switches from … to:1 … 8
External device monitoring:Yes
Protection class:III
Enclosure rating:IP 20
Type:Type 4 (IEC 61496)
Safety integrity level:SIL3 (IEC 61508), SILCL3 (IEC 62061)
Category:Category 4 (EN ISO 13849)
Performance level:PL e (EN ISO 13849)
PFHd:2.9 * 1E-10
TM (mission time):20 a
Supply voltage from, typical, to:19.2 V DC, 24 V DC, 28.8 V DC
Power consumption:< 3.6 W
Connection type:Interchangeable, coded screw-type terminals
Safety outputs:PNP semiconductors, short-circuit protected, cross-circuit monitored
Switching voltage HIGH:17.5 V DC, 24 V DC, 28.8 V DC
Maximum switching voltage LOW:1.3 V DC
Switching current:0.5 A
Maximum response time:30 ms
Maximum cable length to EPSE:100 m
Wire cross-section from … to:0.25 mm² … 2.5 mm²
Ambient operation temperature, min … max:-20 °C … 55 °C
Ambient storage temperature:-25 °C … 75 °C
Air humidity from … to:15 % … 95 %, non-condensing
Vibration resistance:5 (IEC 60068-2-6)
Oscillation frequency from … to:10 … 55
Shock resistance:10 g, 16 ms (IEC 60068-2-29)
Mounting:Snap-on mounting on top-hat rail acc. to IEC 60715
Diagnostic display:7-segment
OSSD OFF indication:Red
Restart indication:Yellow
OSSD ON indication:Green
System part:Controller unit
