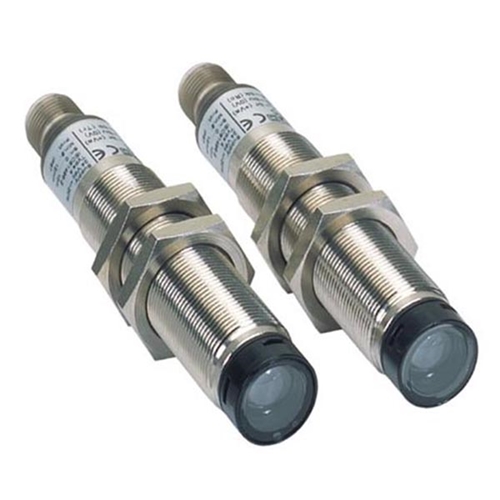

Sick (L40S-21MA1A) Single Beam Photoelectric

Safety Switch Sender

Sick

Your cart total:

.

Checkout

0

6027339




































Manufacturer:SICK
Model:L40S-21MA1A
Height (mm):97.7
Weight (kg):0.067
Diameter:M18
Series:Single-beam Photoelectric Safety Switch
Type:Sender
Access protection (vertical:1
Typical range:0 m … 10 m
Number of beams:1
Optical axis:Axial
Aperture angle/receiving angle:According to type 4 (IEC 61496-2)
Light sender/type of light:LED/Visible red light
Wave length:660 nm
Protection class:III
Enclosure rating:IP 67
Type:Type 4 (IEC 61496)
Safety integrity level:SIL3 (IEC 61508), SILCL3 (IEC 62061)
Category:Category 4 (EN ISO 13849)
Performance level:PL e (EN ISO 13849)
PFHd:2.9 * 1E-10
TM (mission time):20 a
Supply voltage typical, from, to:24 V DC, 19.2 V DC, 28.8 V DC
Maximum power consumption:< 60 mA
Design:Cylindrical
Connection type:Plug M12 x 4, straight
Housing material:Brass nickel-plated
Lens material:Glass
Ambient operating temperature from … to:-20 °C … 55 °C
Storage temperature from … to:-25 °C … 75 °C
Air humidity from … to:Non-condensing 15 … 95 %
Vibration resistance (checked to):5 g (IEC 60068-2-6)
Oscillation frequency from … to:10 Hz … 55 Hz
Shock resistance:10 g, 16 ms (IEC 60068-2-29)
