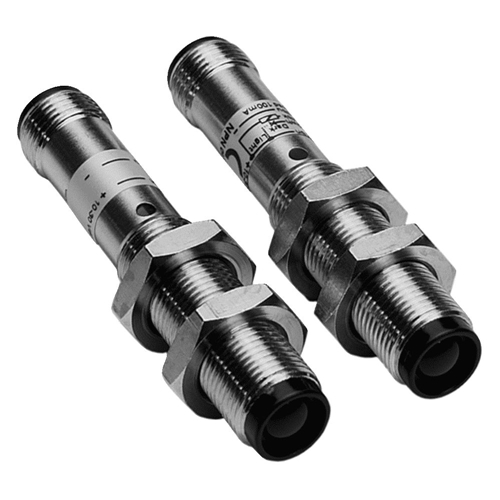

SICK TX/RX VS/VE 12-2P430

Sick

Your cart total:

.

Checkout

0

6026224


































Manufacturer:SICK
Model:VS/VE12-2P430
Height (mm):66.3
Weight (kg):0.036
Series:Photoelectric Sensors
Sensor/Detection Principles:Through-beam photoelectric sensor
Housing design:Cylindrical, straight
Thread diameter:M12 x 1
Sensing range max:0 m … 5 m
Sensing range:0 m … 4 m
Type of light:Infrared light
Light source:LED
Wave length:880 nm
Angle of dispersion:Ca. 1.4°
Light spot size (distance):Ø 100 mm (4 m)
Supply voltage:10 V DC … 30 V DC
Ripple:< 10 %
Power consumption:20 mA
Output type:PNP
Switching mode:Light/dark-switching
Switching mode selector:Selectable via L/D control wire
Output current Imax:100 mA
Response time:< 2.5 ms
Switching frequency:250 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, B, C, D
Protection class:III
Housing material:Nickel-plated brass/PA, Metal
Optics material:PMMA
Enclosure rating:IP 67
Ambient operating temperature:-25 °C … 70 °C
Ambient storage temperature:-25 °C … 70 °C
