6026195

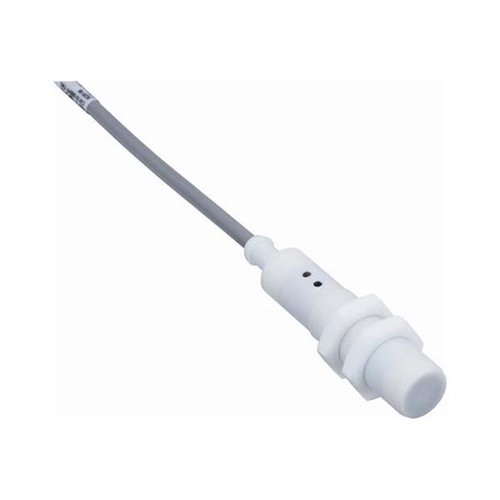

SICK CM18-08BPP-TWO CAPACITIVE SENSOR

8MM SENSING RANGE. 4 WIRE DC. 10-40V

Sick

Your cart total:

.

Checkout

0

6026195










































Manufacturer:SICK
Model:CM18-08BPP-TW0
Height (mm):71.5
Series:Capacitive Proximity Sensors
Housing:Cylindrical
Thread size:M18 x 1
Sensing range Sn:8 mm
Assured sensing range Sa:5.76 mm
Installation type:Flush
Sensitivity adjustment:Potentiometer, 270°
Switching frequency:± 30 Hz
Output type:PNP
Output function:Complementary
Electrical wiring:DC 4-wire
Enclosure rating:IP 67
Connection type:Cable, 4-wire, 2 m
Supply voltage:10 V DC … 40 V DC
Ripple:< 10 %
Voltage drop:< 2.5 V DC
Power consumption:< 10 mA
Time delay before availability:< 100 ms
Hysteresis:4 % … 20 %
Repeatability:< 5 %
Temperature drift (% of Sr):± 10 %
EMC:According to EN 60947-5-2
Output current Ia:< 200 mA
Cable material:PVC
Conductor cross-section:0.34 mm²
Short-circuit protection:Yes
Reverse polarity protection:Yes
Power-up pulse protection:Yes
Shock/vibration:30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature:-25 °C … 60 °C
Housing material:PTFE
Thread length:46.5 mm
Tightening torque, max:< 2.6 Nm
Metal:1
Water:1
PVC:Ca. 0.4
Oil:Ca. 0.25
