6026139

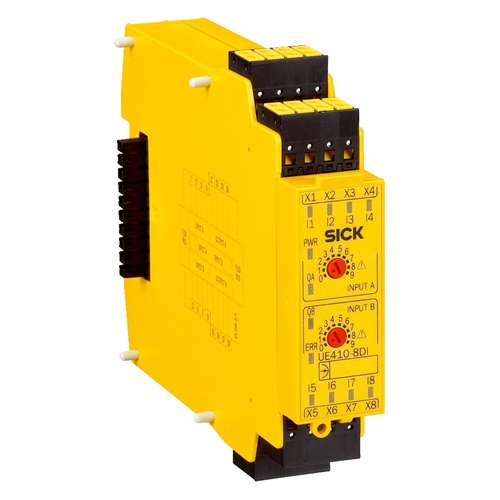

SICK UE410-8DI3 SAFETY CONTROLLER

Sick

Your cart total:

.

Checkout

0

6026139


































Manufacturer:SICK
Model:UE410-8DI3
Height (mm):96.5
Width (mm):22.5
Depth (mm):120.8
Weight (kg):0.15
Series:Safety Controllers
Safety integrity level:SILCL3 (IEC 62061)
Category:Category 4 (EN ISO 13849)
Performance level:PL e (EN ISO 13849)
PFHd:3.8 * 1E-09, 7.3 * 1E-09
TM (mission time):20 a
Power consumption:3 W
Protection class:EN 61140
Number of inputs:4 dual-channel or 8 single-channel
Input voltage HIGH:13 V DC … 30 V DC
Input voltage LOW:-5 V DC … 5 V DC
Input current HIGH:2.4 mA … 3.8 mA
Input current LOW:-2.5 mA … 2.1 mA
Switch-on time of inputs:70 ms
Synchronous time monitoring:1,500 ms (at program 3 and 5)
Response time:< 17 ms < 56 ms
Enclosure rating terminals:IP 20
Protection class housing:IP 40
Ambient operating temperature:-25 °C ... 55 °C
Storage temperature:-25 °C ... 70 °C
Air humidity:15 % ... 95 %, non-condensing
Climate conditions according to:EN 61131-2
Electromagnetic compatibility (EMC):EN 61000, EN 55011
Vibration resistance:5 g, 5 Hz … 500 Hz (EN 600068-2-6)
Connection type:Cable gland
Connection type:Plug-in screw-type terminals

No extended details available.
