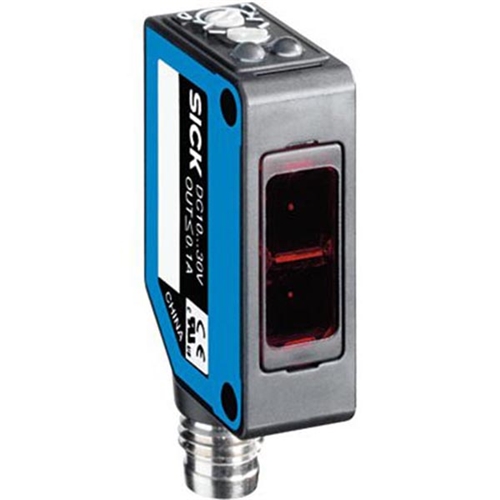

SICK WT100-P3419 PHOTOELECTRIC PROXIMITY SENSOR

Sick

Your cart total:

.

Checkout

Discontinued

6026116




































Manufacturer:SICK
Model:WT100-P3419
Height (mm):31
Width (mm):11
Depth (mm):20
Weight (kg):0.009
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background blanking
Housing design:Rectangular, Slim
Sensing range max:4 mm … 140 mm
Sensing range:10 mm … 100 m
Type of light:Visible red light
Light source:LED
Wave length:680 nm
Sensitivity Adjustment:Potentiometer, 270 °
Light spot size (distance):Ø 8 mm (90 mm)
Supply voltage:10 V DC … 30 V DC
Ripple:± 10 %
Power consumption:< 30 mA
Output type:PNP
Switching mode:Light/dark-switching
Output characteristic:Open collector
Signal voltage PNP HIGH/LOW:UV - 1.8 V / ca. 0 V
Output current Imax:100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Connector M8, 3-pin
Circuit protection:A, B, D
Housing material:ABS/PC/POM
Optics material:PMMA
Enclosure rating:IP 65
Items supplied:Stainless steel mounting bracket (1.4301/304) BEF-W100-A
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
