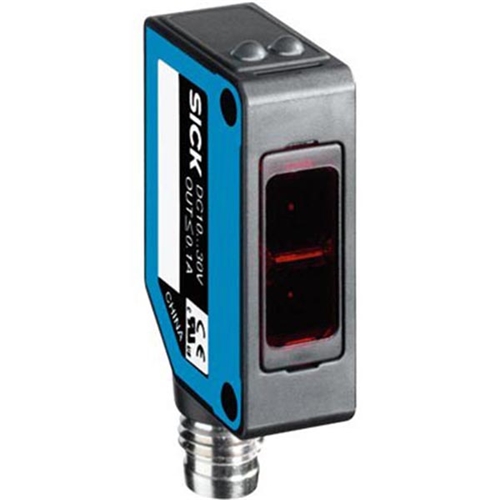

SICK (WL100-P3330) PHOTOELECTRIC REFLEX SENSOR

Sick

Your cart total:

.

Checkout

Discontinued

6026060




































Manufacturer:SICK
Model:WL100-P3330
Height (mm):31
Width (mm):11
Depth (mm):20
Weight (kg):0.009
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, standard optics
Housing design:Rectangular, Slim
Sensing range max:0.01 m … 6 m
Sensing range:0.01 m … 5 m
Type of light:Visible red light
Light source:LED
Wave length:680 nm
Angle of dispersion:Ca. 4°
Light spot size (distance):Ø 250 mm (3.5 m)
Supply voltage:10 V DC … 30 V DC
Ripple:± 10 %
Power consumption:< 30 mA
Output type:PNP
Switching mode:Light switching
Output characteristic:Open collector
Signal voltage PNP HIGH/LOW:UV - 1.8 V / ca. 0 V
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Connector M8, 3-pin
Circuit protection:A, B, D
Polarisation filter:Yes
Housing material:ABS/PC
Optics material:PMMA
Enclosure rating:IP 65
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
