6021125

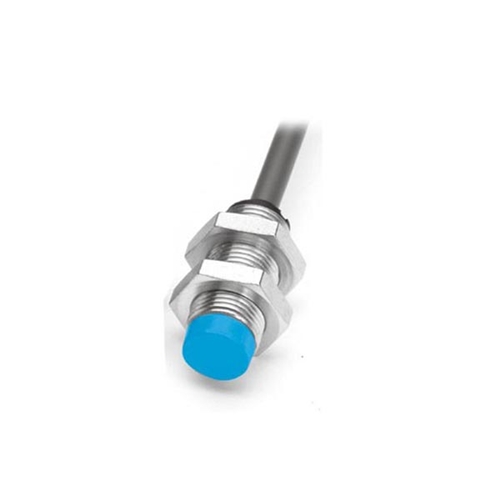

SICK IM12-04N-N-ZW0 PROXIMITY SENSOR

Sick

Your cart total:

.

Checkout

0

6021125











































Manufacturer:SICK
Model:IM12-04N-N-ZWO
Length (mm):30
Series:Inductive Proximity Sensors
Housing:Cylindrical
Thread size:M12 x 1
Sensing range Sn:4 mm
Assured sensing range Sa:3.24 mm
Installation type:Non-flush
Switching frequency:1,500 Hz
Output type:NAMUR
Output function:NC
Enclosure rating:IP 67
Connection type:Cable, 2-wire, 2 m
Supply voltage:7.5 V DC … 25 V DC
Power consumption:< 30 mA
Current consumption, sensor is activated:< 1 mA
Current consumption, sensor is not activated:> 2.2 mA
Hysteresis:1 % … 15 %
Temperature drift (% of Sr):± 15 %
EMC:According to EN 60947-5-6
Cable material:PVC
Conductor cross-section:0.34 mm²
Cable diameter:4.9 mm
Shock/vibration:30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature:-20 °C … 70 °C
Housing material:Metal, Nickel-plated brass
Housing cap material:Plastic, PBT
Thread length:25 mm
Tightening torque, max:7 Nm
Items supplied:Fastening nuts (2 x); width across 17, metal
EC approval certificate:PTB 03 ATEX 2037
Hazardous area category:1G, 2G
Input voltage Ui max:15 V
Input power Pi max:120 mW
Input current Ii max:50 mA
Internal capacitance Ci max:140 nF
Internal inductance Li max:130 µH
Nominal voltage:8.2 V DC
ATEX marking:II 1 G Ex ia IIB T6 Ta: -20 °C … 55 °C, II 2 G Ex Ia IIC T6 Ta: -20 °C … 70 °C
Cable resistance:50 O
