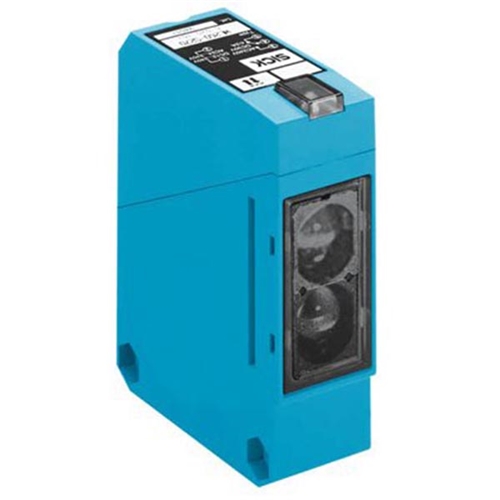

Sick (WL260-F270) Photoelectric Reflex Sensor

Sick

Your cart total:

.

Checkout

Discontinued

6020976








































Manufacturer:SICK
Model:WL260-F270
Height (mm):78
Width (mm):25
Depth (mm):63
Weight (kg):0.12
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor
Housing design:Rectangular
Sensing range max:0.01 m … 14 m
Sensing range:0.01 m … 11.5 m
Type of light:Visible red light
Light source:LED
Light spot (distance):240 mm (8 m)
Sensitivity Adjustment:Potentiometer, 270 °
Angle of dispersion:1.7°
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 35 mA
Output type:PNP
Switching mode:Light/dark-switching
Output characteristic:Open collector
Switching mode selector:Selectable via light/dark selector
Output current Imax:100 mA
Response time:< 1.5 ms
Switching frequency:333 Hz
Connection type:Cable gland
Circuit protection:A, B, C, D
Protection class:II
Polarisation filter:Yes
Housing material:ABS
Optics material:PMMA
Enclosure rating:IP 67
Test input sender off:TE to VS
Items supplied:Mounting bracket BEF-W260, Reflector P250
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
UL File Number:EN50081-1, 242356
