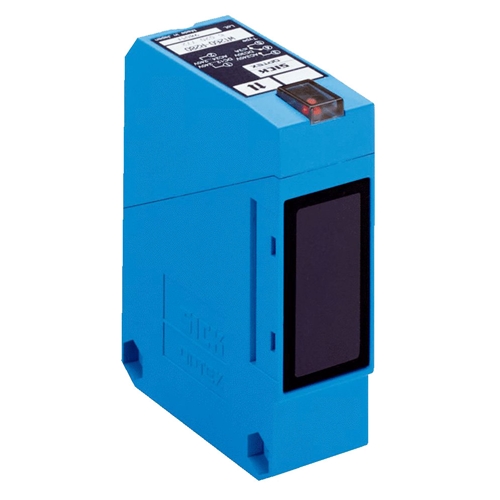

SICK (WT260-S270) PHOTOELECTRIC PROXIMTIY SENSOR

Sick

Your cart total:

.

Checkout

0

6020769






































Manufacturer:SICK
Model:WT260-S270
Height (mm):78
Width (mm):25
Depth (mm):63
Weight (kg):0.12
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, energetic
Housing design:Rectangular
Sensing range max:5 mm … 1,700 mm
Sensing range:5 mm … 1,300 mm
Type of light:Visible red light
Light source:LED
Light spot (distance):60 mm (1,300 mm)
Sensitivity Adjustment:Potentiometer, 270 °
Angle of dispersion:1.8°
Supply voltage:12 V DC … 240 V DC, 24 V AC … 240 V AC
Power consumption:< 5 VA
Output type:Relay
Output function:Change-over contacts
Switching mode:Light switching
Output characteristic:Electrically isolated
Switching current (switching voltage):3 A (240 V AC), 3 A (30 V DC)
Response time:< 20 ms
Switching frequency:25 Hz
Connection type:Cable gland
Circuit protection:A, C
Protection class:II
Housing material:ABS
Optics material:PC
Enclosure rating:IP 67
Items supplied:Mounting bracket BEF-W260
Usage category:AC-15, DC-13, According to EN 60947-1
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
UL File Number:EN50081-1, 242356
