6020478

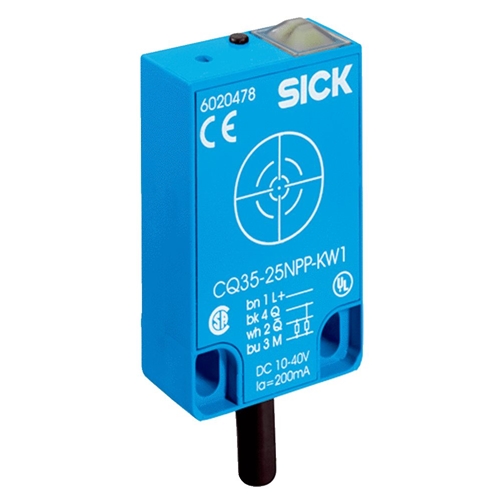

SICK CQ35-25-NPP-KW1 CAPACTIVE PROXIMITY

SENSOR NON-FLUSH Sn=4...25mm DC 4-WIRE P NP IP67 RECTANGULAR PRE-CABLED (2M) PV C

Sick

Your cart total:

.

Checkout

0

6020478











































Manufacturer:SICK
Model:CQ35-25NPP-KW1
Height (mm):15
Width (mm):35
Depth (mm):57.5
Series:Capacitive Proximity Sensors
Housing:Rectangular
Sensing range Sn:25 mm
Assured sensing range Sa:18 mm
Installation type:Non-flush
Sensitivity adjustment:Potentiometer, 270°
Switching frequency:50 Hz
Output type:PNP
Output function:Complementary
Electrical wiring:DC 4-wire
Enclosure rating:IP 67
Connection type:Cable, 4-wire, 2 m
Supply voltage:10 V DC … 40 V DC
Ripple:< 10 %
Voltage drop:< 2.5 V DC
Power consumption:< 10 mA
Time delay before availability:< 100 ms
Hysteresis:4 % … 20 %
Repeatability:< 5 %
Temperature drift (% of Sr):± 10 %
EMC:According to EN 60947-5-2
Output current Ia:< 200 mA
Cable material:PVC
Conductor cross-section:0.34 mm²
Short-circuit protection:Yes
Reverse polarity protection:Yes
Power-up pulse protection:Yes
Shock/vibration:30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature:-25 °C … 75 °C
Housing material:Plastic
Housing cap material:PC
Sensing face material:Plastic
Metal:1
Water:1
PVC:Ca. 0.4
Oil:Ca. 0.25
