6020065

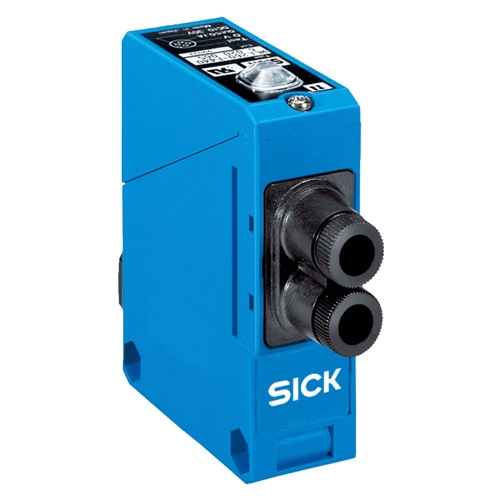

Sick Fibre Optic Sensor PNP 4 pin

(6020065)(WLL260-F440)

Sick

Your cart total:

.

Checkout

0

6020065


































Manufacturer:SICK
Model:WLL260-F440
Height (mm):77.8
Width (mm):25
Depth (mm):63
Weight (kg):0.12
Series:Fibre-optic Sensors
Sensing range max:0 mm … 110 mm, proximity system, 0 mm … 65 mm, proximity system, 0 mm … 800 mm, through-beam system
Sensing range:0 mm … 50 mm, proximity system, 0 mm … 700 mm, through-beam system, 0 mm … 90 mm, proximity system
Light source:LED
Type of light:Visible red light
Sensitivity adjustment:Potentiometer, 270°
Indication:LED
Light spot diameter (distance):Depends on scanning range
Sensor/detection principle:Fibre-optic photoelectric sensor
Housing design (light emission):Rectangular
Enclosure rating:IP 66
Supply voltage:10 V DC … 30 V DC
Ripple:< 5 Vpp
Power consumption:< 35 mA
Output type:PNP, Light/dark-switching, selectable via light/dark selector, open collector
Output current Imax:100 mA
Response time:< 0.7 ms
Switching frequency:700 Hz
Connection type:Connector M12, 4-pin
Protection class:II
Circuit protection:A, B, C, D
Housing material:ABS
Ambient operating temperature:-25 °C ... 55 °C
Ambient storage temperature:-40 °C ... 70 °C
Items supplied:Mounting bracket BEF-W260
Test input sender off:TE to VS

No extended details available.
