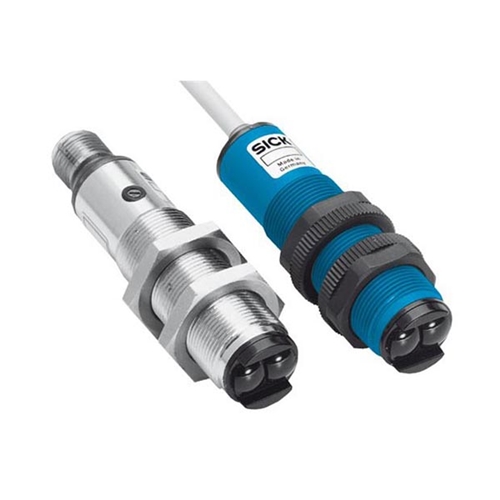

SICK (VL18-3F3140) PHOTO ELECTRIC SENSOR

(6013530)

Sick

Your cart total:

.

Checkout

0

6013530



































Manufacturer:SICK
Model:VL18-3F3140
Height (mm):78
Weight (kg):0.12
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor
Housing design:Cylindrical, straight
Thread diameter:M18 x 1
Optical axis:Axial
Sensing range max:0.05 m … 3.7 m
Sensing range:0.05 m … 3 m
Type of light:Visible red light
Light source:LED
Light spot (distance):150 mm (3 m)
Angle of dispersion:2.8°
Supply voltage:10 V DC … 30 V DC
Ripple:< 10 %
Power consumption:< 30 mA
Output type:PNP
Switching mode:Light/dark-switching
Output characteristic:Open collector
Output current Imax:100 mA
Response time:< 2 ms
Switching frequency:250 Hz
Connection type:Connector M12, 4-pin
Circuit protection:A, B, C, D
Protection class:III
Polarisation filter:Yes
Housing material:Nickel-plated brass
Optics material:PMMA
Enclosure rating:IP 67
Ambient operating temperature:-25 °C … 70 °C
UL File Number:NMFT2.E175606
