6011048

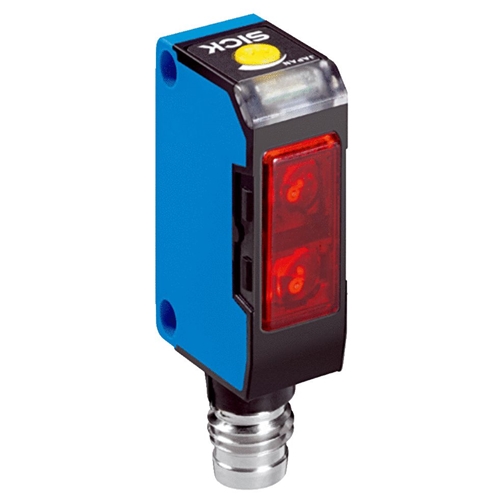

SICK WT150-P162 PHOROELECTRIC PROXIMITY SENSOR

WITH BACKGROUND SUPPRESSION

Your cart total:

0

6011048






































Manufacturer:SICK
Model:WT150-P162
Height (mm):28
Width (mm):10
Depth (mm):18
Weight (kg):0.044
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, background suppression
Housing design:Rectangular
Sensing range max:2 mm … 100 mm
Type of light:Visible red light
Light source:LED
Sensitivity Adjustment:Potentiometer, 5-turn
Angle of dispersion:Ca. 5°
Supply voltage:10 V DC … 30 V DC
Ripple:± 10 %
Power consumption:20 mA
Output type:PNP
Switching mode:Light/dark-switching
Output characteristic:Open collector
Switching mode selector:Control cable
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Cable, 4-wire, 2 m
Cable material:PVC
Conductor cross-section:0.18 mm²
Circuit protection:A, B, C, D
Protection class:II
Housing material:ABS
Optics material:PC
Enclosure rating:IP 67
Items supplied:BEF-W150-A mounting bracket
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRNT2.E128350 & NRNT8.E128350

No extended details available.
