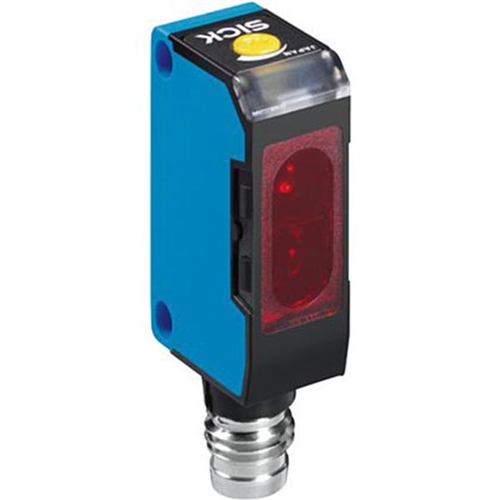

SICK (6011033) PHOTOELECTRIC SENSOR

(WL150-N132)

Sick

Your cart total:

.

Checkout

Discontinued

6011033







































Manufacturer:SICK
Model:WL150-N132
Height (mm):28
Width (mm):10
Depth (mm):17.5
Weight (kg):0.044
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric retro-reflective sensor, standard optics
Housing design:Rectangular
Sensing range max:0 m … 2.4 m
Sensing range:0.01 m … 2 m
Type of light:Visible red light
Light source:LED
Sensitivity Adjustment:Potentiometer, 270 °
Angle of dispersion:Ca. 6°
Supply voltage:10 V DC … 30 V DC
Ripple:± 10 %
Output type:NPN
Switching mode:Light/dark-switching
Output characteristic:Open collector
Switching mode selector:Control cable
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Connection type:Cable, 4-wire, 2 m
Cable material:PVC
Conductor cross-section:0.18 mm²
Circuit protection:A, B, C, D
Protection class:II
Polarisation filter:Yes
Housing material:ABS
Optics material:PMMA
Enclosure rating:IP 67
Items supplied:BEF-W150-A mounting bracket, Reflector PL20A
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRNT2.E128350 & NRNT8.E128350
