6011032

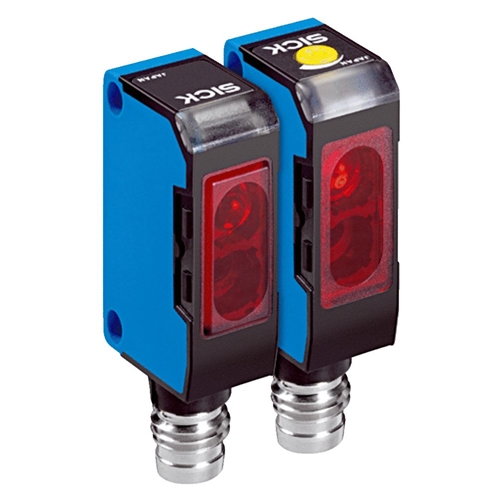

SICK PHOTO ELEC SWITCH WS/WE150-P430

Through-beam, 0-4.4m, PNP, M8 plug. Rang e.

Sick

Your cart total:

.

Checkout

0

6011032





































Manufacturer:SICK
Model:WS/WE150-P430
Height (mm):28
Width (mm):10
Depth (mm):17.5
Weight (kg):0.007
Series:Photoelectric Sensors
Sensor/Detection Principles:Through-beam photoelectric sensor
Housing design:Rectangular
Sensing range max:0 m … 4.4 m
Sensing range:0 m … 4 m
Type of light:Visible red light
Light source:LED
Sensitivity Adjustment:Potentiometer, 270 °
Angle of dispersion:6°
Supply voltage:10 V DC … 30 V DC
Ripple:± 10 %
Power consumption, sender:< 15 mA
Power consumption, receiver:< 20 mA
Output type:PNP
Switching mode:Light/dark-switching
Output characteristic:Open collector
Switching mode selector:Control cable
Output current Imax:< 100 mA
Response time:< 0.5 ms
Switching frequency:1,000 Hz
Angle of reception:15°
Connection type:Connector M8, 4-pin
Circuit protection:A, B, C, D
Protection class:II
Enclosure rating:IP 67
Items supplied:BEF-W150-A mounting bracket
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 75 °C
UL File Number:NRNT2.E128350 & NRNT8.E128350
