6008787

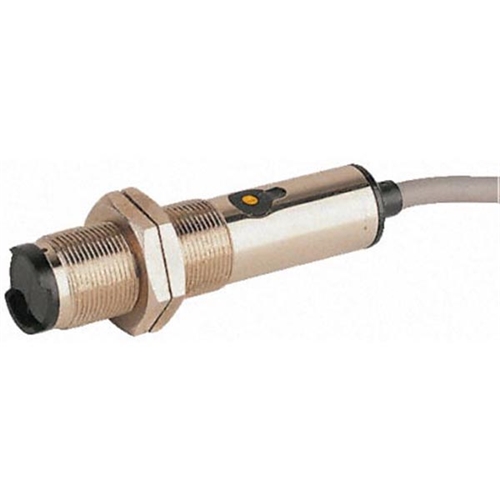

SICK. PHOTOELECTRIC SENSOR.(VT180-P112)

M18 METAL HOUSING

Sick

Your cart total:

.

Checkout

Discontinued

6008787











































Manufacturer:SICK
Model:VT180-P112
Height (mm):63.3
Weight (kg):0.125
Series:Photoelectric Sensors
Sensor/Detection Principles:Photoelectric proximity sensor, energetic
Housing design:Cylindrical, straight
Thread diameter:M18 x 1
Optical axis:Axial
Sensing range max:0 mm … 130 mm
Sensing range:0 mm … 110 mm
Type of light:Infrared light
Light source:LED
Light spot (distance):65 mm (110 mm)
Wave length:920 nm
Sensitivity Adjustment:Potentiometer, 270 °
Supply voltage:10 V DC … 30 V DC
Ripple:± 5 Vpp
Power consumption:30 mA
Output type:PNP
Switching mode:Light/dark-switching
Output characteristic:Open collector
Switching mode selector:Selectable via L/D control wire
Signal voltage PNP HIGH/LOW:Approx. VS -1.0 V/0 V
Output current Imax:< 100 mA
Response time:< 1.5 ms
Switching frequency:333 Hz
Connection type:Cable, 4-wire, 2 m
Cable material:PVC
Conductor cross-section:0.18 mm²
Cable diameter:3.8 mm
Circuit protection:A, C, D
Protection class:III
Housing material:Nickel-plated brass, PBT/PC, Metal
Optics material:PMMA
Enclosure rating:IP 66
Items supplied:Fastening nuts (2 x)
Ambient operating temperature:-25 °C … 55 °C
Ambient storage temperature:-40 °C … 70 °C
UL File Number:NRNT2.E128350 & NRNT8.E128350
Discontinued:The product has been discontinued. Replacement product: VTF180-2P41112
