3046537

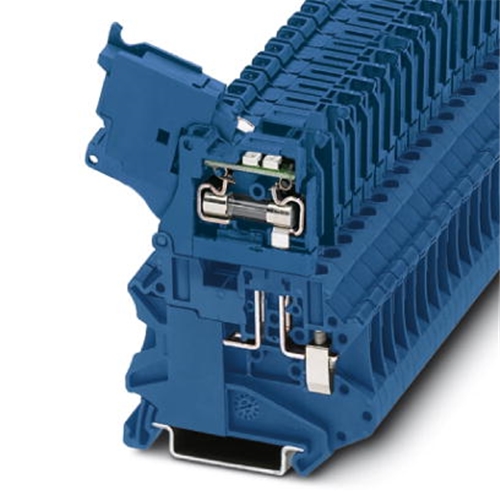

Fuse modular terminal block/blue

Fuse modular terminal block, Connection method: Screw connection, Cross section: 0.14 mm²- 6 mm², AWG: 26 - 10, Nominal current: 6.3 A, Nominal voltage: 24 V, W idth: 6.2 mm, Fuse type: G / 5 x 20, Fus e type: Glass, Mounting type: NS 35/7.5, NS 35/15, Color: blue

Your cart total:

.

Checkout

In stock

3046537






















Number Of Levels:1
Number Of Connections :2
Connection Method :Screw Connection
Cross Section (mm):0.14 - 6
AWG :26 - 10
Nominal Current (A):6.3
Nominal Voltage (V):24
Rated Surge Voltage (kV):4
Max Load Current (A):6.3
Fuse Type:G / 5 x 20 (Glass)
Mounting Type :NS 35/7.5, NS 35/15
Insulating Material:PA
Colour :Blue
Make:Phoenix Contact
Series:UT 4-HESILED 24 (5X20) BU
Product Range :Fuse modular terminal block
Height (mm):73
Width (mm):6.2
Length (mm):57.8
Weight (kg):0.017628

No extended details available.
