20761163000

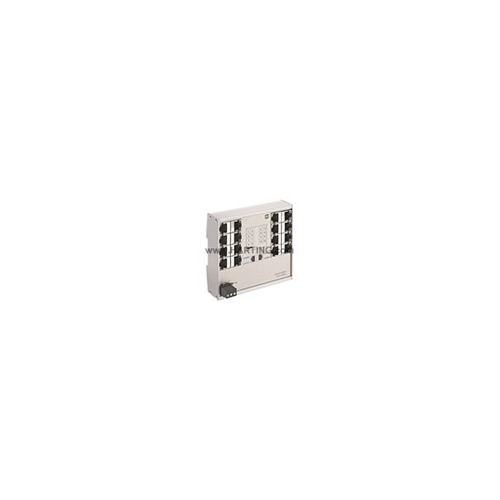

HARTING ETHERNET SWITCH

Harting

Your cart total:

.

Checkout

Discontinued

20761163000










































Industrial Ethernet Switches:unmanaged
RoHS Conformity:Yes
Termination Method:RJ45
Topology:LineStarmixed
Input Current:ca. 220 mA
Input Current, Additional Data:at 24 V DC
Surface, Hood - Housing:anodised
Material, Hood - Housing:aluminium
Cable Type, Copper:Shielded Twisted Pair (STP) or Unshielded Twisted Pair (UTP), Category 5
Degree of Protection Acc. to DIN EN 60 529:IP30
Series, Ethernet:Ha-VIS eCon 2000
Diagnostics Ethernet:Status Link - GreenData transfer (Act) - Green flashingData transfer rate (Speed) - 100 Mbit/s: Yellow / 10 Mbit/s: OFF
Type of Ethernet:Fast Ethernet
Mounting:35 mm top-hat mounting rail acc. to EN 60 715
PROFINET:Yes
EtherNet/IP:Yes
Operating Temperature, Min.:-10 C
Operating Temperature, Max.:70 C
Storage Temperature, Min.:-40 C
Storage Temperature, Max.:85 C
Relative Humidity, Min.:0.1
Relative Humidity, Max.:0.95
MTBF:ca. 1,150,000 h
Input Voltage 1:ca. 24 V
Input Voltage, Min.:DC 12 V
Input Voltage, Max.:DC 48 V
Termination Power Supply:3-pole, pluggable screw contact (24 V, 0, FE)
Diagnostics Voltage:LED green
Ethernet Type, Copper:10/100Base-T(X)
No. of Ports, Copper:16
Termination Copper:RJ45 (Twisted Pair)
Data Rate Copper:10 Mbit/s100 Mbit/s
Cable Length, Copper, Max.:100 m (Twisted Pair, with cable Category 5 acc. to DIN EN 50 173-1)
Application Fields:AutomationAutomotive IndustryWind EnergyPower distribution systems
Make:Harting
Product Range :Ha-VIS eCon 2160-A
Height (mm):113.5
Width (mm):119.4
Depth (mm):27.3
Net Weight:504 g
