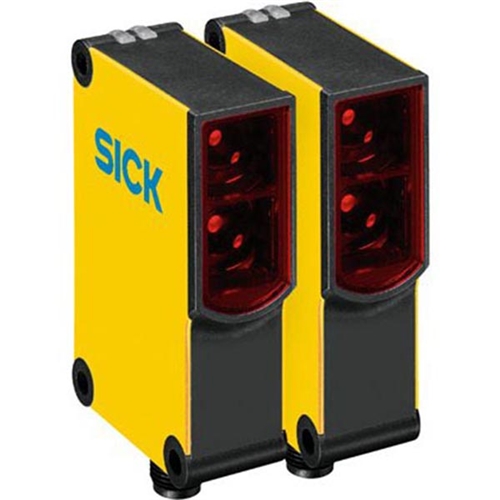

SICK (2043906) PE SENDER L27S-3D2430

SAFETY SENDER - SINGLE BEAM

Sick

Your cart total:

.

Checkout

Discontinued

2043906





































Manufacturer:SICK
Model:L27S-3D2430
Height (mm):24.6
Width (mm):80.6
Depth (mm):54
Weight (kg):0.1
Series:Single-beam Photoelectric Safety Switch
Type:Sender
Access protection (vertical:1
Typical range:0 m … 25 m
Maximum scanning range:0 m … 35 m
Number of beams:1
Light spot diameter (distance):200 mm (10 m)
Aperture angle/receiving angle:According to type 2 (IEC 61496-2)
Protection class:II
Enclosure rating:IP 67
Type:Type 2 (EN 61496)
Safety integrity level:SIL1 (IEC 61508), SILCL1 (IEC 62061)
Category:Category 2 (EN ISO 13849)
Test rate (external test):100/s (EN ISO 13849)
Maximum demand rate:60/min (EN ISO 13849)
Performance level:PL c (EN ISO 13849)
PFHd:1.0 * 1E-06
TM (mission time):20 a
Supply voltage typical, from, to:24 V DC, 16.8 V DC, 28.8 V DC
Switching outputs:PNP, Q and Q not
Maximum switching sequence:1,000 Hz
Maximum switching current:100 mA
Maximum power consumption:< 25 mA
Diagnostic display:LED
Design:Rectangular
Connection type:Plug M12 x 4
Housing material:ABS
Ambient operating temperature from … to:-40 °C … 60 °C
Storage temperature from … to:-40 °C … 75 °C
