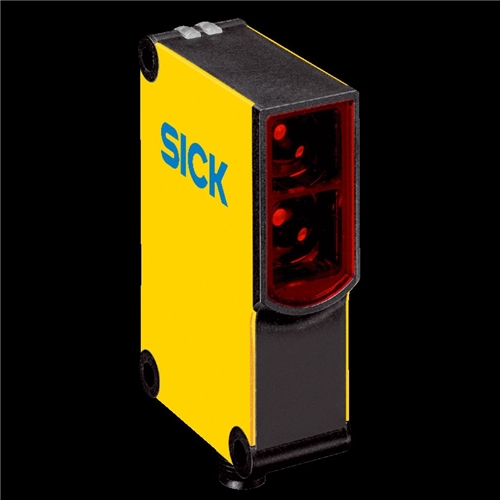

SICK (2043904)PE EMITTER L27E-3P2430

Sick

Your cart total:

.

Checkout

Discontinued

2043904





































Manufacturer:SICK
Model:L27E-3P2430
Height (mm):24.6
Width (mm):80.6
Depth (mm):54
Weight (kg):0.1
Series:Single-beam Photoelectric Safety Switch
Type:Receiver
Access protection (vertical:1
Typical range:0 m … 25 m
Maximum scanning range:0 m … 35 m
Number of beams:1
Light spot diameter (distance):200 mm (10 m)
Aperture angle/receiving angle:According to type 2 (IEC 61496-2)
Light sender/type of light:LED/Visible red light
Wave length:660 nm
Average service life (TA):100,000 h (25 °C)
Protection class:II
Enclosure rating:IP 67
Type:Type 2 (EN 61496)
Safety integrity level:SIL1 (IEC 61508), SILCL1 (IEC 62061)
Category:Category 2 (EN ISO 13849)
Test rate (external test):100/s (EN ISO 13849)
Maximum demand rate:60/min (EN ISO 13849)
Performance level:PL c (EN ISO 13849)
PFHd:1.0 * 1E-06
TM (mission time):20 a
Supply voltage typical, from, to:24 V DC, 16.8 V DC, 28.8 V DC
Maximum power consumption:< 35 mA
Diagnostic display:LED
Design:Rectangular
Connection type:Plug M12 x 4
Housing material:ABS
Ambient operating temperature from … to:-40 °C … 60 °C
Storage temperature from … to:-40 °C … 75 °C

No extended details available.
