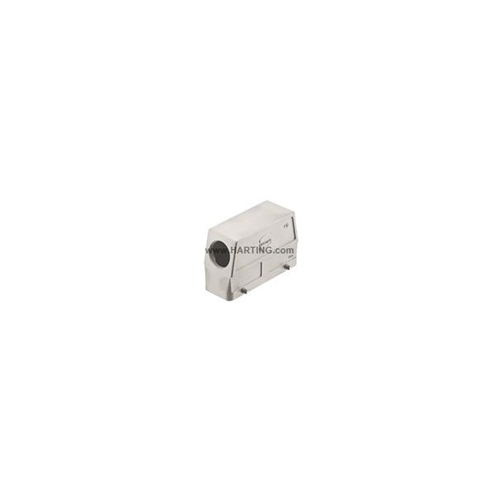

HARTING HOOD SIDE ENTRY

Harting

Your cart total:

.

Checkout

0

19628240527



































Han-Easy Lock:Yes
RoHS Conformity:Yes
Size:24 B
Special Style:electrically conductive
Locking Type:2 levers on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:double locking lever
Type of Hood - Housing:Hoods
Series:Han EMC/BHan High Temp
Colour, Locking Element:RAL 7037 (grey)
Material, Shielding Frame:zinc die-cast alloy
Surface, Hood - Housing:unpainted
Material, Seal:NBR
Material, Hood - Housing:aluminium die-cast
Hood:Yes
No. of Cable Entries:1
Size, Hood - Housing:M32
Cable Entry:side entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Min. Temperature With High Temp Components:-40 C
Max. Temperature With High Temp Components:200 C
Make:Harting
Product Range :Han EMC/B 24 Hood Side Entry M32
Height (mm):76
Width (mm):120
Depth (mm):55.6
Net Weight:257.3 g
