19628101271

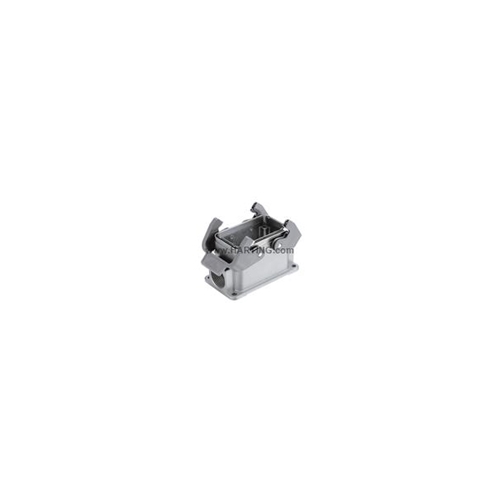

HARTING SURFACE EMC HOUSING SIZE 10B M25

ENTRIES TWIN HATCH

Harting

Your cart total:

.

Checkout

0

19628101271

































Han-Easy Lock:Yes
RoHS Conformity:Please contact our customer service
Size:10 B
Special Style:electrically conductive
Locking Type:2 levers on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:double locking lever
Type of Hood - Housing:Housings, surface mounting
Series:Han EMC/B
Colour, Locking Element:RAL 7037 (grey)
Material, Shielding Frame:zinc die-cast alloy
Surface, Hood - Housing:unpainted
Material, Seal:NBR
Material, Hood - Housing:aluminium die-cast
Housing:Yes
No. of Cable Entries:2
Size, Hood - Housing:M25
Cable Entry:side entry
Style:Low construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han EMC/B 10 SM Base 2xM25
Height (mm):55
Width (mm):118
Depth (mm):52
Net Weight:235.2 g

No extended details available.
