19620031440

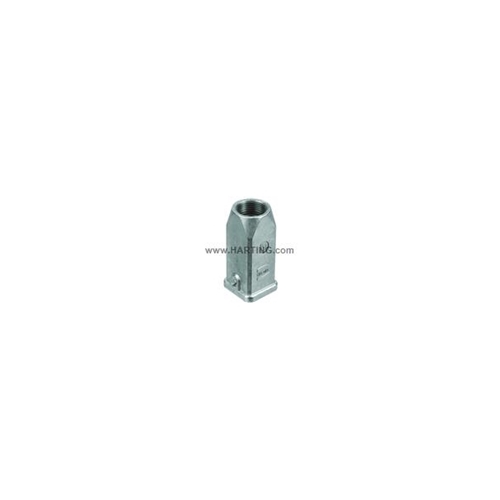

HARTING TOP ENTRY HOOD WITH 2 PEGS M20

Harting

Your cart total:

.

Checkout

0

19620031440






























RoHS Conformity:Yes
Size:3 A
Special Style:electrically conductive
Locking Type:1 lever on the housing
Material, Locking Lever:steel, zinc-plated
Locking Lever:double locking lever
Type of Hood - Housing:Hoods
Series:Han EMC
Surface, Hood - Housing:unpainted
Material, Seal:NBR
Material, Hood - Housing:zinc die-cast
Hood:Yes
Hoods and Housings, Case of Operation:Hoods/Housings for higher EMC requirements
No. of Cable Entries:1
Size, Hood - Housing:M20
Cable Entry:Top entry
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP44 / IP67 is achieved with seal screw 09 20 000 9918
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han 3 EMC Top Entry 2 Pegs M20
Height (mm):60
Width (mm):28
Depth (mm):27
Net Weight:63.2 g

No extended details available.
