19400241263

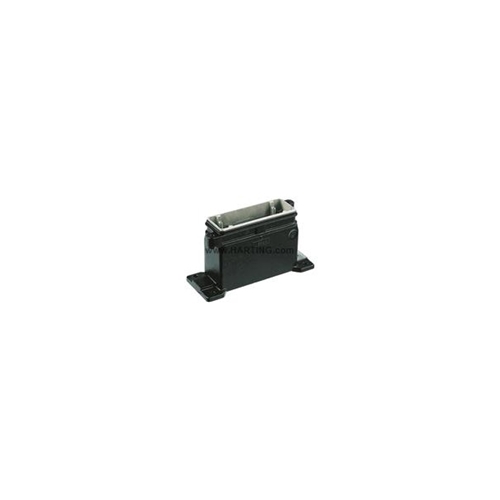

HARTING HAN 24B SURFACE MOUNT HSG 1 SIDE ENTRY M40

Heavy Duty Power Connectors SURFACE MOUN TING HSG HAN 24B 1 SIDE ENTRY

Harting

Your cart total:

.

Checkout

0

19400241263































RoHS Conformity:Please contact our customer service
Size:24 B
Locking Type:Screw locking
Type of Hood - Housing:Housings, surface mounting
Series:Han HPR
Corrosion Resistance:ASTM B117-09 (500 h)
Material, Screwing:stainless steel
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 9005 (black)
Material, Hood - Housing:aluminium die-cast, corrosion resistant
Hood:Yes
No. of Cable Entries:1
Size, Hood - Housing:M40
Cable Entry:side entry
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65 / IP68 / IP69K
Screw Size:M6
Tightening Torque, Locking:4 Nm
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range:Han 24HPR-HSM-1xM40-Screw Lock
Height (mm):110.9
Width (mm):216
Depth (mm):80
Net Weight:1,154 g
