19400060511

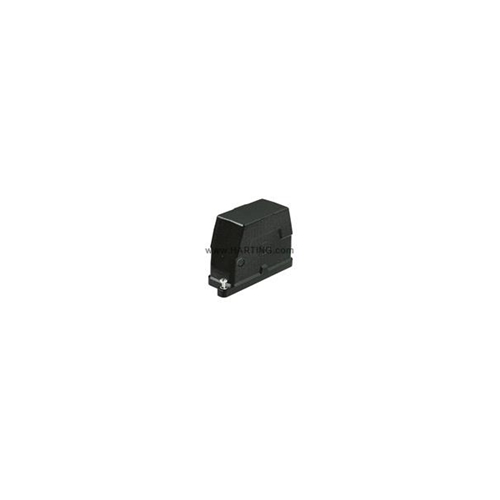

HARTING SIDE ENTRY HOOD (M25)HAN HPR

Harting

Your cart total:

.

Checkout

0

19400060511































RoHS Conformity:Yes
Size:6 B
Locking Type:Screw locking
Type of Hood - Housing:Hoods
Series:Han HPR
Corrosion Resistance:ASTM B117-09 (500 h)
Material, Screwing:stainless steel
Surface, Hood - Housing:powder-coated
Material, Seal:NBR
Colour, Hood - Housing:RAL 9005 (black)
Material, Hood - Housing:aluminium die-cast, corrosion resistant
Hood:Yes
No. of Cable Entries:1
Size, Hood - Housing:M25
Cable Entry:side entry
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65 / IP68 / IP69K
Screw Size:M6
Tightening Torque, Locking:4 Nm
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han 6HPR Hood Side M25 Screw Lock
Height (mm):100.5
Width (mm):132
Depth (mm):58
Net Weight:455 g
