19370161521

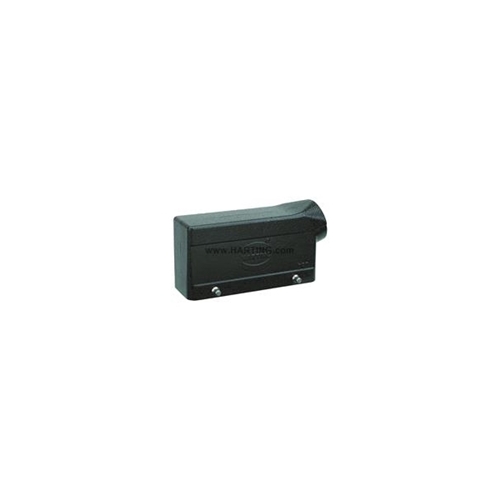

HARTING SIDE ENTRY HOOD SIZE 16 M25

THREAD.

Harting

Your cart total:

.

Checkout

0

19370161521































RoHS Conformity:Please contact our customer service
Size:16 B
Locking Type:2 levers on the housing
Material, Locking Lever:Stainless steel
Locking Lever:double locking lever
Type of Hood - Housing:Hoods
Series:Han M
Corrosion Resistance:ASTM B117-09 (500 h)
Surface, Hood - Housing:powder-coated
Material, Seal:FPM
Colour, Hood - Housing:RAL 9005 (black)
Material, Hood - Housing:aluminium die-cast
Hood:Yes
No. of Cable Entries:1
Size, Hood - Housing:M25
Cable Entry:side entry
Style:Low construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han M Hood Side Entry LC 4 Pegs M25
Height (mm):62.5
Width (mm):93.5
Depth (mm):55.6
Net Weight:207.2 g

No extended details available.
