19370160272

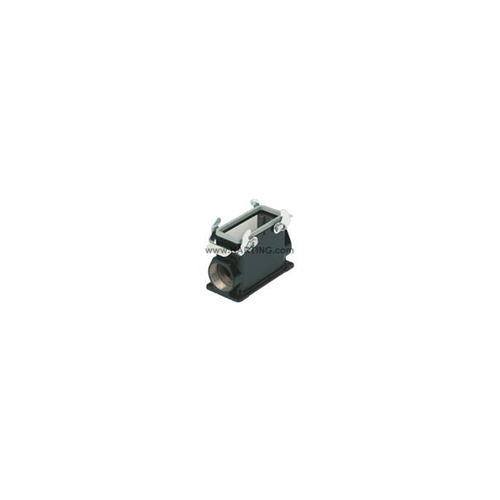

HARTING HAN 16M-ASG2-QB-M32

IP 65 side entry aluminium die-cast Lock ing type:2 levers on the housing Sta i n less steel

Harting

Your cart total:

.

Checkout

0

19370160272































RoHS Conformity:Please contact our customer service
Size:16 B
Locking Type:2 levers on the housing
Material, Locking Lever:Stainless steel
Locking Lever:double locking lever
Type of Hood - Housing:Housings, surface mounting
Series:Han M
Corrosion Resistance:ASTM B117-09 (500 h)
Surface, Hood - Housing:powder-coated
Material, Seal:FPM
Colour, Hood - Housing:RAL 9005 (black)
Material, Hood - Housing:aluminium die-cast
Housing:Yes
No. of Cable Entries:2
Size, Hood - Housing:M32
Cable Entry:side entry
Style:High construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han 16M-asg2-QB-M32
Height (mm):80.8
Width (mm):137
Depth (mm):57
Net Weight:428 g

No extended details available.
