19340100521

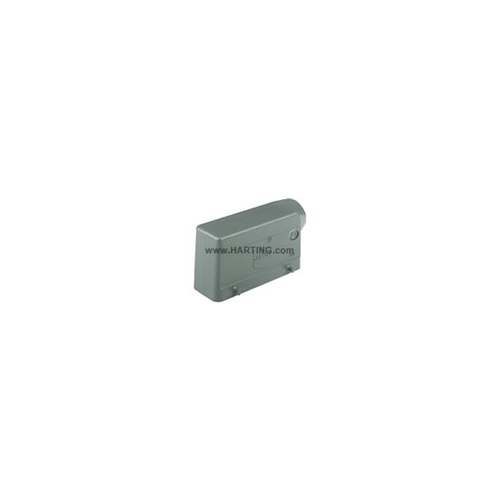

HARTING HOUSING SIDE ENTRY SURFACE MOUNT

Harting

Your cart total:

.

Checkout

0

19340100521






























Han-Easy Lock:Yes
RoHS Conformity:Please contact our customer service
Size:24 B
Locking Type:2 levers on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:double locking lever
Type of Hood - Housing:Housings, surface mounting
Series:Han Hv E
Surface, Hood - Housing:powder-coated
Material, Hood - Housing:aluminium die-cast
Hood:Yes
No. of Cable Entries:1
Size, Hood - Housing:M25
Cable Entry:side entry
Style:Low construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Series, Insert:Han 24 Hv E
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han HVE HOOD SIDE ENTRY
Height (mm):62.5
Width (mm):120
Depth (mm):57
Net Weight:238.9 g

No extended details available.
