19340060271

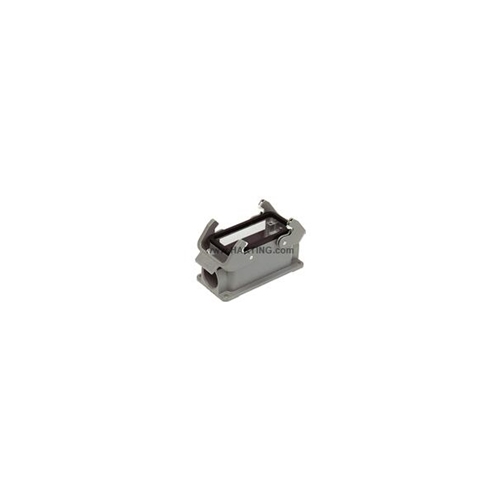

HARTING SURFACE MOUNTING 2 SIDE ENTRIES

Harting

Your cart total:

.

Checkout

0

19340060271






























RoHS Conformity:Yes
Size:16 B
Special Style:with 2 locking levers and 1 adapter frame
Locking Type:2 levers on the housing
Material, Locking Lever:Polycarbonate + stainless steel
Locking Lever:Han-Easy Lock
Type of Hood - Housing:Housings, surface mounting
Series:Han Hv E
Surface, Hood - Housing:powder-coated
Material, Hood - Housing:aluminium die-cast
Hood:Yes
No. of Cable Entries:2
Size, Hood - Housing:M25
Cable Entry:side entry
Style:Low construction
Flammability Locking Lever Acc. to UL 94:V 0
Protection Class Acc. to UL 50:NEMA Typ 4/4X/12
Approval GL:Yes
Degree of Protection Acc. to DIN EN 60 529:IP65
Series, Insert:Han 16 Hv E
Limiting Temperature, Min.:-40 C
Limiting Temperature, Max.:125 C
Make:Harting
Product Range :Han 6HvE-asg2-QB-M25
Height (mm):56
Width (mm):139
Depth (mm):57
Net Weight:272.9 g
